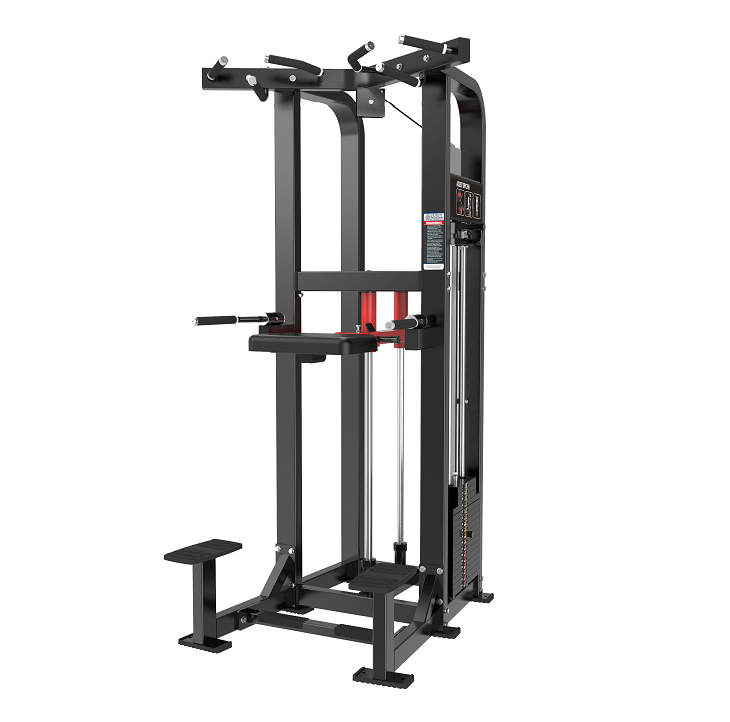

ASSISTED CHIN DIP

The Mansa Tuff Fitness Assisted Chin Dip is perfect for developing arm and back muscles. TF-ACD has multiple chin-up handles for different grip positions. The foldable kneepads give the option for unassisted training and the weight selector pin makes doing chin ups or dips more accessible regardless of the user’s current fitness level.

Features

• 11 Gauge Steel
• 50 x 100mm thickness 3mm Steel tube
• Steel frame ensures maximum structural integrity
• Each frame receives an electrostatic powder coat finish to ensure maximum adhesion and durability
• Nylon-coated cable meets U.S. military specifications
• Fiberglass-impregnated nylon pulleys feature sealed bearings
• Grips retained with aluminum collars, preventing them from slipping during use
• Hand grips are a durable urethane composite
• Solid-steel weight plates. Top weight plate is fitted with self-lubricating bushings
• Standard rear shrouds
• Weight selector pin magnetically locks in place and is connected to stack to prevent loss

Specifications

• Dimensions: 1280*1150*2210mm
• Machine Weight: 507 lb (230 kg)
• Weight stack: 220 lb (100 kg)
• Weight Stack Increments:  (13) 16.5 lbs (7.5 kg) Weight Plates
• Top Weight Stack Selector Weights: (2) 5.5 lb (2.5 kg) Selector Plates for Incremental Weight Adjustments.
• Dip Handle Arm Distance (Handles Turned Inwards): 22″ (560mm)
• Dip Handle Arm Distance (Handles Turned Outwards): 24.8″ (630mm)
• Weight to Pulley Ratio: 1:1
• User Height Range: 4’11” to 6’5″ (149.86 cm to 195.58 cm)
• Paint Color: Custom
